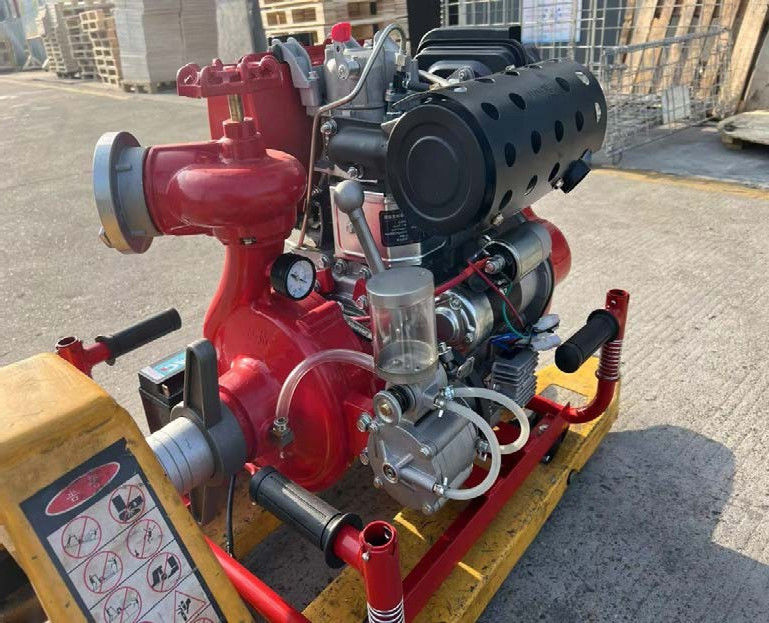

3600rpm Diesel Engine Pumps High Pressure With Recoil Starter

Product Details

Place of Origin: China

Brand Name: GET

Certification: ISO CE

Document: Product Brochure PDF

Payment & Shipping Terms

Price: Negotiable

Delivery Time: 15-20 workdays

Payment Terms: LC, T/T, PayPal, Western Union, Small-amount payment, Money Gram

Get Best Price
Contact Now
Specifications
Highlight:

3600rpm diesel engine pumps

,

diesel engine pumps high pressure

,

3600rpm diesel fuel pump

Type:
Diesel Engine Pumps
Suction/discharger Port Diameter Mm(inch):
50(2'). 80(3'). 100(4'). 150(6')
Discharge Capacity(m³/h):
30 40 110 150
Total Head Lift:
25m 26m 22m 20m
Self-priming Time (s/4m):
80 120 180 180
Max Suction Head:
8m 8m 8m 6m
Rotation Speed (r/min):
3600
Noise Level Db(A)/7m):
85
Overall Dimension(mm):
510x455x640. 560x455x655. 650x470x700. 770x574x785
Dry Weight:
44kg 50kg 71kg 95kg
Rated Power:
2.8kw 4kw 6.3kw 8.5kw
Fuel Consumption G/kw.h:
288 285 281 281
Displacement (cm³):
247 296 418 498
Starter System:
Recoil Starter
Fuel Tank Capacity:
13.5L
Continuous Working Period:
10hr 10hr 8hr 8hr
Type:
Diesel Engine Pumps
Suction/discharger Port Diameter Mm(inch):
50(2'). 80(3'). 100(4'). 150(6')
Discharge Capacity(m³/h):
30 40 110 150
Total Head Lift:
25m 26m 22m 20m
Self-priming Time (s/4m):
80 120 180 180
Max Suction Head:
8m 8m 8m 6m
Rotation Speed (r/min):
3600
Noise Level Db(A)/7m):
85
Overall Dimension(mm):
510x455x640. 560x455x655. 650x470x700. 770x574x785
Dry Weight:
44kg 50kg 71kg 95kg
Rated Power:
2.8kw 4kw 6.3kw 8.5kw
Fuel Consumption G/kw.h:
288 285 281 281
Displacement (cm³):
247 296 418 498
Starter System:
Recoil Starter
Fuel Tank Capacity:
13.5L
Continuous Working Period:
10hr 10hr 8hr 8hr
Description
3600rpm Diesel Engine Pumps High Pressure With Recoil Starter

High Pressure Fuel Vacuum Pump Electric Fuel Pump For Diesel Engine



Diesel engine pumps offer several advantages that make them a popular choice in various applications. Here are some key advantages of diesel engine pumps:

  1. Durability and Reliability: Diesel engines are renowned for their robust construction and durability. They are designed to withstand heavy-duty operations and adverse conditions, making diesel engine pumps highly reliable and long-lasting. They can operate continuously for extended periods without experiencing excessive wear or breakdowns.

  2. High Torque and Power: Diesel engines are known for their high torque output, which enables diesel engine pumps to handle demanding pumping tasks. They can efficiently move large volumes of fluids and handle high-pressure requirements, making them suitable for applications that involve transferring water over long distances or pumping against significant head heights.

  3. Fuel Efficiency: Diesel engines are typically more fuel-efficient than gasoline engines. They can convert a higher percentage of fuel energy into usable power, resulting in lower fuel consumption. This fuel efficiency is advantageous, especially in applications where the pump is required to operate for extended periods or in remote locations where fuel availability may be limited.

  4. Availability of Fuel: Diesel fuel is widely available around the world, making it easier to source fuel for diesel engine pumps. This availability ensures that diesel engine pumps can be used in various locations, including remote or off-grid areas, where electricity supply may be limited or unreliable.

  5. Versatility: Diesel engine pumps are versatile and can be used in a wide range of applications. They are suitable for pumping water, wastewater, slurry, chemicals, and other fluids encountered in different industries such as agriculture, construction, mining, and oil and gas. Their ability to handle varying fluid viscosities and solids content makes them adaptable to diverse pumping requirements.

Model JBC6/10
Type vacuum pump
Max.Flow(T/h) 48
MAX.Lift(m) 60
Rated Speed(rpm) 3600
Water Shot Height 35m
Engine 190F
Maximum Suction Height(m) 7
Self-priming Time(S) 20
Discharge Port Diameter(mm) 65
N.W/G.W(KG) 91/100
Dimensions(mm)
Loading Qty(20GP/40HQ)

Model JBC6/15
Type vacuum pump
Max.Flow(T/h) 54
MAX.Lift(m) 80
Rated Speed(rpm) 3600
Water Shot Height 35
Engine 192
Maximum Suction Height(m) 7
Self-priming Time(S) 20
Discharge Port Diameter(mm) 65
N.W/G.W(KG) 94/103
Dimensions(mm)
Loading Qty(20GP/40HQ)
